"V" Notch Weirs

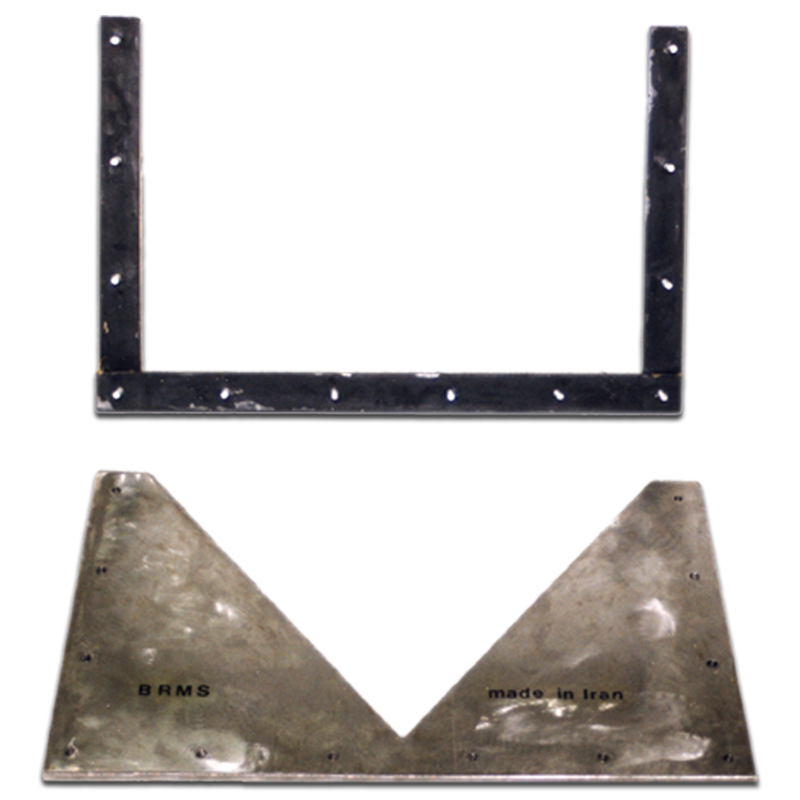

Typical Specifications for Model BRMS-WER-20:

Material: Stainless steel, PVC, or Aluminum (select based on requirements).
Notch Geometry: Triangular, Trapezoidal, or Rectangular (choose the desired notch shape).
Typical Dimensions: 500 mm × 400 mm × 10 mm (customizable based on order).
Measuring Range: 20 Liters/sec (customizable as per requirements).

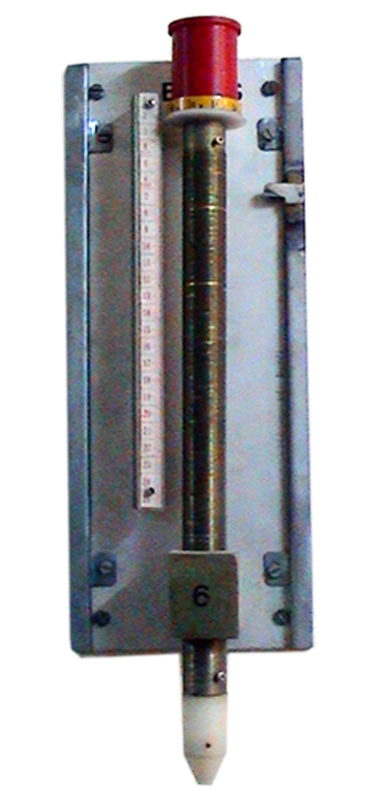

Typical Specifications for Water Level Meter – Model BRMS-WER-RM20:

Water Level Indicator: Mechanical floater or ruler.
Measuring Range: 0 – 250 mm water level.
Resolution: 0.1 mm.
Accuracy: 1 mm.
Readout System: Local reading (mechanical).
Readout Graduation: Water level / water flow.

Typical Specifications for Water Level Meter – Model BRMS-WER-RE20:

Water Level Indicator: Electrical sensor.
Measuring Range: 0 – 250 mm water level.
Resolution: 0.01 mm.
Accuracy: 0.1 mm.
Readout System: Digital – online (electrical).
Capable of Data Transmission: Central readout system / control panel.
Capable of Sending Signals: Alarm, Danger, etc., for water flow beyond defined limits.

Minimum Information Required for Purchase Order Acceptance:

To process your purchase order efficiently, we require the following minimum information:

Measuring Range: Desired range for the “V” Notch Weirs.
Size and Geometry: Specifications regarding the size and geometry of the weirs.
Readout System: Preference for mechanical or electrical readout system.
Resolution and Accuracy: Required resolution and accuracy for the water level meter.
Water Quality and Chemical Composition: Information about the water quality and chemical composition, if applicable.

The “V” Notch Weirs are available in various materials and notch geometries to suit your specific needs. They are designed for precise water flow measurement and monitoring in various applications. The accompanying water level meters offer accurate readings and reliable data collection, with options for mechanical or electrical readout systems. With customizable specifications and the ability to transmit data and issue alerts, these products ensure efficient water management and control.

Please provide us with the necessary information, and we will deliver the “V” Notch Weirs and water level meters that meet your exact requirements.

BRMS instruments have 24 months guarantee and all after-sale services.

BRMS as designer and constructor of the instruments can accept feasible orders as specified by the clients.

Instruments specifications may be modified and updated, with new technology developments.
