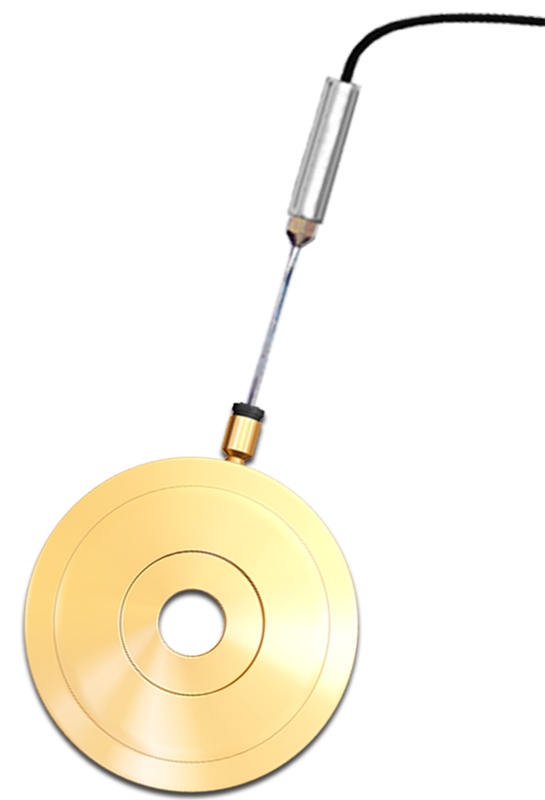

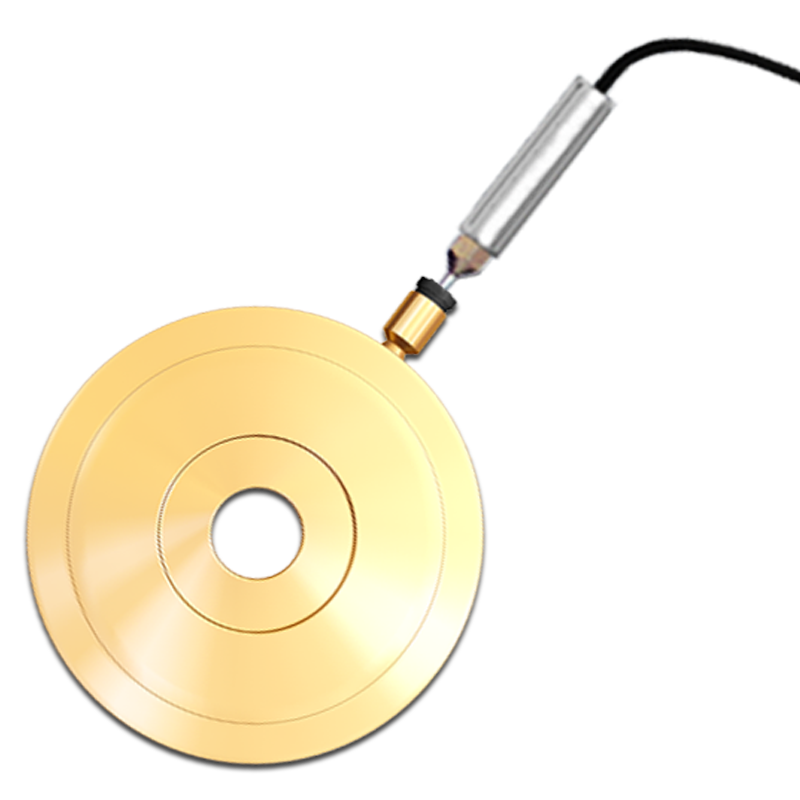

Hydraulic Load Cell for Anchors (Electrical)

Hydraulic Load Cell for Anchors

Applications:

The Hydraulic Load Cell for Anchors is designed for monitoring and stability control of rock masses reinforced by anchors, rock bolts, cables, tandons, as well as measuring axial loads in these structures. It is also suitable for load measurement in beams of concrete and steel structures, foundation of bridge pillars, large buildings, retaining walls, and the contact surface between precast concrete structures.

Main Distinguished Features:

The Hydraulic Load Cell for Anchors offers several notable features that contribute to its effectiveness and reliability:

Negligible temperature effect on measurement accuracy ensures accurate readings even in varying temperature conditions.
Quick response to load variations enables real-time monitoring and immediate detection of load changes.
The elastic behavior of the loading surface ensures accurate load distribution and measurement.

Typical Specifications for Model BRMS-HLCE:

Measuring Range: The load cell can be customized to support measuring ranges of up to 2000 kN, based on client requirements.
Sensor: The load cell utilizes an electrical pressure transducer as the sensing element.
Measuring Accuracy: The load cell provides a minimum accuracy of 1.0% of the measuring range, ensuring precise load measurements.
Body Material: The load cell is constructed with steel material and features anti-corrosion coatings to ensure durability and longevity.
Accompanying Parts: The load cell is accompanied by loading and load distribution plates with semi-spherical endplates, facilitating proper load distribution and measurement.

Minimum Information Required for Accepting an Order:

To process an order for the Hydraulic Load Cell for Anchors, the following information is typically required:

Application: Specify the intended application of the load cell to ensure proper customization and compatibility.
Measuring Range: Provide the required measuring range in kilonewtons (kN) to meet the load capacity requirements of your specific application.
Gauge Type, Resolution, and Accuracy: Specify the desired gauge type (electrical pressure transducer), resolution, and required accuracy for precise load measurements.
Material, Inner and Outer Diameters of Load Cell: Provide the material specifications and the inner and outer diameter requirements of the load cell to ensure proper fit and compatibility.
Temperature and Humidity Variation Range in the Measurement Environment: Describe the temperature and humidity conditions in the measurement environment to ensure the load cell can operate within the specified range.

By providing this essential information, our team can assist you in customizing and delivering the appropriate Hydraulic Load Cell for Anchors that meets your specific requirements. These load cells are designed to accurately measure and monitor loads in anchor systems, structures, and various applications, ensuring stability, safety, and optimal performance.

BRMS instruments have 24 months guarantee and all after-sale services.

BRMS as designer and constructor of the instruments can accept feasible orders as specified by the clients.

Instruments specifications may be modified and updated, with new technology developments.
