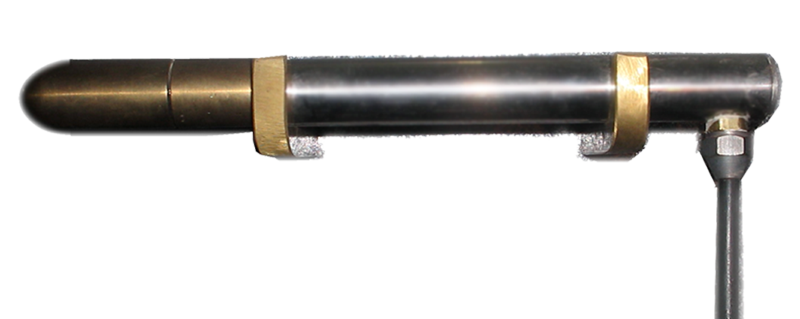

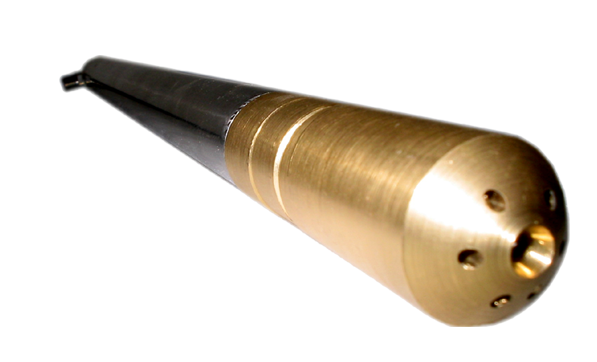

Electric Piezometers


Electric Piezometers are used for monitoring and measuring water pore pressure in various geological and construction applications, including:

  • Monitoring water pore pressure in rocks and soils.
  • Measuring pore pressure variation in selected locations in rock and soil.
  • Measuring water drain and uplift hydraulic pressure.
  • Measuring water drain from waste disposal sites.
  • Measuring pore pressure in retaining walls, piles, culverts, tunnel linings, etc.
Typical specifications for models BRMS-PZBR and PZCR:
  • Measuring range: Customizable based on client requirements.
  • Measuring resolution: Typically ±0.025% of the measuring range.
  • Measuring accuracy: Typically ±0.5% of the measuring range.
  • Calibration factor: 1.00.
  • Temperature effect: Less than ±0.05% of the measuring range per degree Celsius.
  • Probe material: Stainless steel.
  • Filter material: Ceramic/bronze filters (high/low air entry, as required).
  • Filter permeability: Determined based on high/low air entry type.
  • Filter length: Typically 100 cm (adjustable to client’s specification).
  • Filter diameter: Typically 20-25 mm (adjustable to client’s specification).
Main Distinguished Features:
  • Negligible temperature effect on measurement accuracy, ensuring reliable data.
  • Quick response to changes in pore pressure, allowing for timely monitoring.
  • Capability to be equipped with an automatic readout system for convenience and efficiency.
Available Models:

Electric Piezometers are available in two main types:

  1. High air entry type.
  2. Low air entry type.
Minimum Information required for accepting a purchase order:

To process a purchase order for Electric Piezometers, the following information is typically required:

  • Application details, specifying the intended use.
  • Measuring accuracy and resolution specifications.
  • Probe type and preferred readout system.
  • Material, length, and diameter of the probe.
  • Temperature and humidity variation range in the measurement environment.

By providing the necessary information, our team can assist you in selecting and customizing the Electric Piezometers that meet your specific requirements. Our instruments offer accurate and responsive measurements of water pore pressure, enabling effective monitoring and quality control in various geological and construction applications.


BRMS instruments have 24 months guarantee and all after-sale services.

BRMS as designer and constructor of the instruments can accept feasible orders as specified by the clients.

Instruments specifications may be modified and updated, with new technology developments.
