Concrete Thickness Measurement Instrument


The Concrete Thickness Measurement Instrument is designed for accurately measuring the thickness of concrete with the desired accuracy specified by the client.

Typical Specifications:
  • Depth of measurement: Up to 300 mm (increased thickness can be considered).
  • Accuracy of measurement: Typically ±0.1%, for plane surfaces.
  • Measurement time (reaction speed): Typically 3-4 seconds.
  • Display screen: According to specifications.
  • Probe size: Typically 200 × 100 × 50 mm (% water content).
  • Main probe weight: Typically 200-250 grams with AA batteries, or 500-900 grams with rechargeable batteries.
  • Operating temperature range: -5 to +60 degrees Celsius.
  • Operating humidity range: Up to 90% humidity.

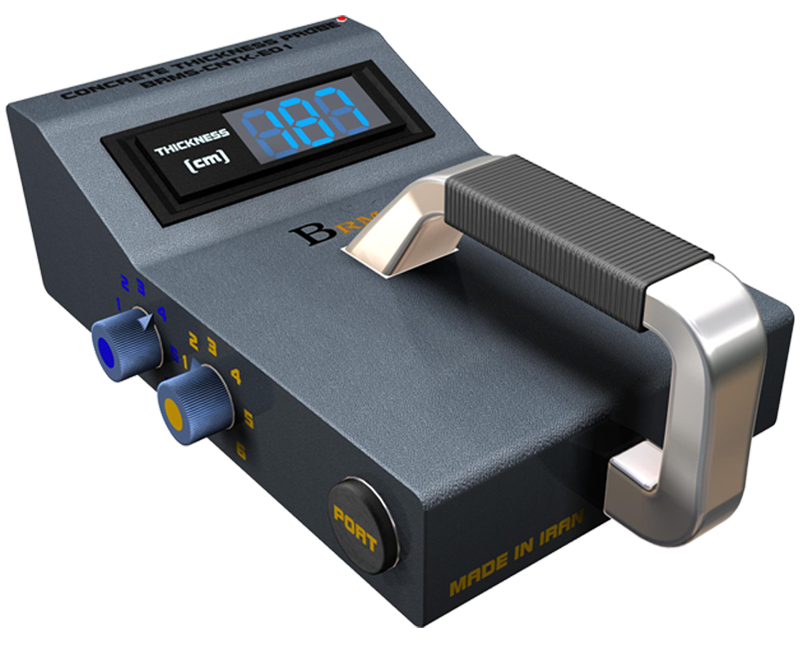

BRMS Concrete Thickness Measurement Instrument
Main Distinguished Features:
  • Design and construction according to the client’s feasible specifications.
  • Rapid detection of thickness distribution throughout concrete blocks.
  • Increased reaction speed of the sensor.
  • Rapid detection of minimum/maximum permissible thickness.
  • Design for use over smoothly curved surfaces.
  • Equipped with wavelength adjustment for different application environments.

The Concrete Thickness Measurement Instrument provides accurate and reliable non-destructive testing for measuring the thickness of concrete. Its adjustable measurement accuracy, quick response time, and customized design options make it suitable for various applications. The instrument can rapidly detect thickness distribution, identify minimum and maximum thickness requirements, and adapt to curved surfaces. It also offers wavelength adjustment for different application environments.

Contact us with your specific requirements, and we will design and construct a Concrete Thickness Measurement Instrument that meets your needs. Our instrument offers precise thickness measurements, rapid detection capabilities, and the flexibility to adapt to different concrete structures and surfaces.


BRMS instruments have 24 months guarantee and all after-sale services.

BRMS as designer and constructor of the instruments can accept feasible orders as specified by the clients.

Instruments specifications may be modified and updated, with new technology developments.
