Concrete Reinforcement Bar Locator


The Concrete Reinforcement Bar Locator is designed for accurately locating the depth and orientation of embedded metal bars in concrete structures. It offers the following applications:

  • Locating the exact depth and orientation of embedded metal bars.
  • Adjusting the measurement accuracy based on client specifications.

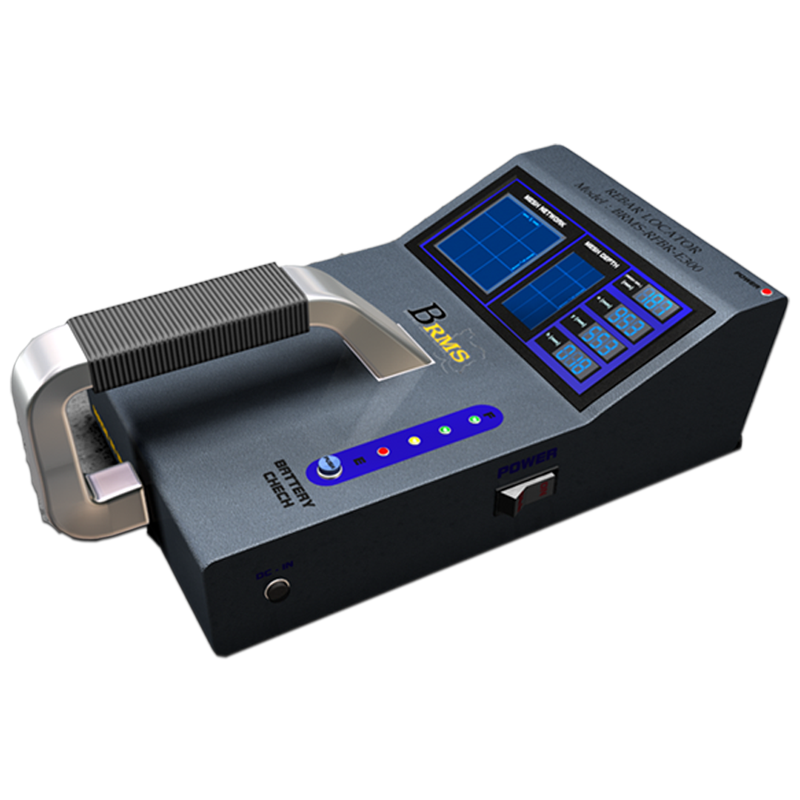

BRMS Concrete Reinforcement Bar Locator
BRMS Concrete Reinforcement Bar Locator
Typical Specifications:
  • Depth of measurement: Up to 300 mm (increased depth can be considered).
  • Accuracy of measurement: Typically ±1 mm.
  • Measurement time (reaction speed): Typically 3-4 seconds.
  • Display screen: According to specifications.
  • Probe size: Typically 200 × 100 × 50 mm.
  • Main probe weight: Typically 400-500 grams with AA batteries, or 800-1200 grams with rechargeable batteries.
  • Operating temperature range: -35 to +85 degrees Celsius.
  • Operating humidity range: Up to 90% humidity.
  • Standard: BS 1881: 204.
Main Distinguished Features:
  • Possibility of designing and constructing bar locators according to the client’s feasible specifications.
  • Possibility of increasing the sensor’s reaction speed.
  • Rapid detection of the minimum/maximum permissible concrete thickness.
  • Adjustment of detection depth for embedded reinforcement bars.
  • Design for use over curved surfaces.
  • Increased detection depth with increasing bar diameter.
  • Equipped with wavelength adjustment for different application environments.

The Concrete Reinforcement Bar Locator provides accurate and reliable non-destructive testing for locating embedded metal bars in concrete structures. Its adjustable measurement accuracy, quick response time, and customized design options make it suitable for various applications. The instrument is compliant with the BS 1881: 204 standard.


Contact us with your specific requirements, and we will design and construct a Concrete Reinforcement Bar Locator that meets your needs. Our instrument offers precise depth and orientation measurements, rapid detection capabilities, and the flexibility to adapt to different environments and concrete thicknesses.


BRMS instruments have 24 months guarantee and all after-sale services.

BRMS as designer and constructor of the instruments can accept feasible orders as specified by the clients.

Instruments specifications may be modified and updated, with new technology developments.
