Casagranda Piezometer Assembly


The Casagranda Piezometer Assembly is a reliable solution for monitoring water pore pressure in rocks and soils. It offers a wide range of applications, including:

  • Monitoring water pore pressure variations in selected locations within rock and soil formations.
  • Measuring water drain and uplift hydraulic pressure.
  • Monitoring water drainage in waste disposal sites.
  • Measuring pore pressure in retaining walls, piles, culverts, tunnel linings, and more.
BRMS Casagranda Piezometer Assembly
BRMS Casagranda Piezometer Assembly
Typical Specifications for Model BRMS-PZSP-…:
  • Measuring range: Customizable based on client requirements.

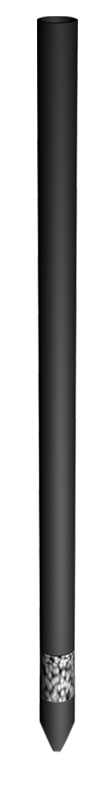

  • Filter material: Ceramic filter with typically 60-micron pores.
  • Filter permeability: Typically 0.0002 liter/sec.
  • Filter length: Typically 300 cm (adjustable to client’s specifications).
  • Filter diameter: Typically 20-25 mm (adjustable to client’s specifications).
  • Pipe materials: PVC, polyethylene, or polypropylene (as ordered by the client).
  • Water level detector (Dipmeter): Material, length, and diameter can be customized to client’s specifications.

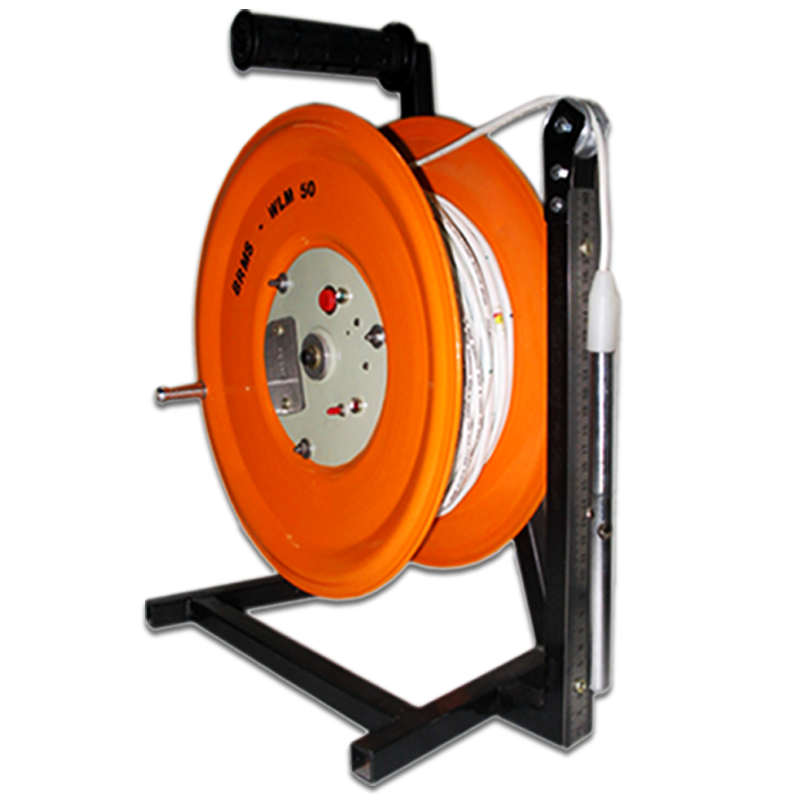

Main Distinguished Features for Water Detection Probe (Dipmeter):
  • Negligible temperature effect on measurement accuracy, ensuring reliable results in varying environmental conditions.
  • Quick response to water surface detection.
  • Unaffected by water showering from borehole walls.
  • Can be equipped with a headphone for use in noisy environments.
  • Depth indicator available as mechanical signs in a flat cable or digital indicator with unique specifications.
Available Models:
  • Mechanical centimetric graded flat cables.
  • Digital counter probe and cable assembly.
BRMS Casagranda Piezometer Assembly
Minimum Information Required for Purchase Order Acceptance:

To provide you with the most suitable Casagranda Piezometer Assembly, please provide the following information with your order:

  • Measuring accuracy (typically ±1 mm).
  • Probe type and readout system preference.
  • Material, length, and diameter of the probe.
  • Depth of the piezometric borehole (water well).
  • Temperature and humidity variation range in the measurement environment.

With the Casagranda Piezometer Assembly, you can accurately monitor water pore pressure and assess the hydraulic conditions in various geological and engineering projects. Our piezometers are designed to deliver reliable measurements and can be customized to meet your specific requirements. Whether you need a mechanical or digital solution, we offer models with distinguished features, including quick response times and resistance to environmental factors.

Provide us with the necessary information, and we will supply you with a Casagranda Piezometer Assembly that meets your needs, enabling you to monitor water pore pressure effectively and ensure the stability of your projects.


BRMS instruments have 24 months guarantee and all after-sale services.

BRMS as designer and constructor of the instruments can accept feasible orders as specified by the clients.

Instruments specifications may be modified and updated, with new technology developments.
